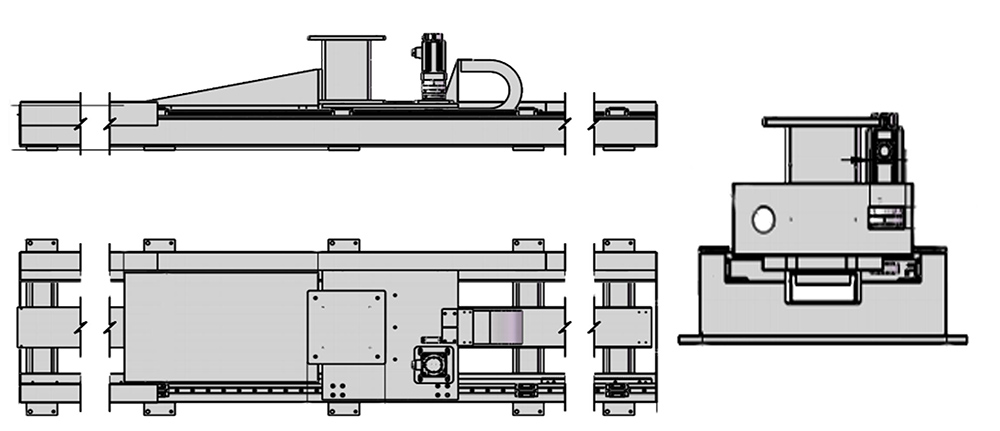

Ground Track Intelligent Workstation

Along with the development of fiber laser source , hand-held laser welding machine was widely used and changed the industrial welding market by making it much simple for different angle and welding processing like tailored welding ,overlap welding ,T-profile welding ，Internal/external corner welding and wire feefer .it could completely replace the application of traditional arc welder and electric welder technology in thin stainless steel ,iron sheet, aluminum plate and other metal sheet.

Six-axis linkage can complete any in space. The perfect combination of mechanical arm and fiber laser welding machine can meet the needs of various automatic production. It is widely used in automatic welding of kitchenware, bathroom, door handles and precision parts and hardware.

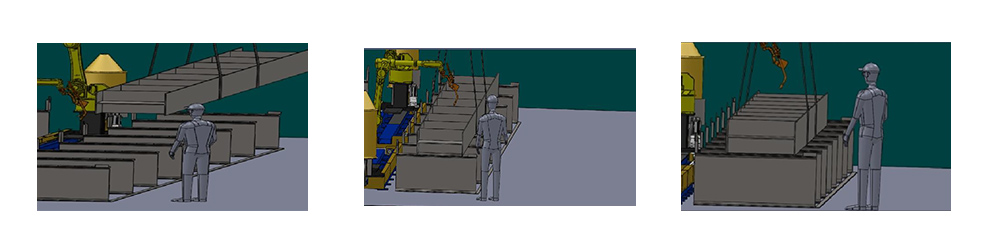

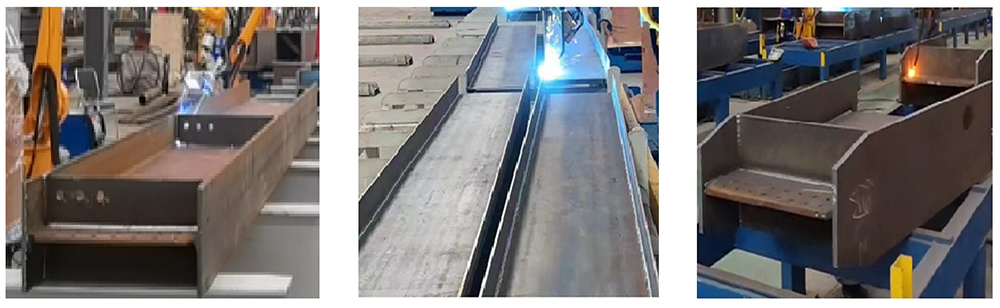

Seven axis cantilever intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis cantilever workstation is compatible with the adaptability of the ground rail workstation and improves the adaptability in the width direction. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information integrated with a fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.

Seven axis gantry intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis gantry workstation is compatible with the adaptability of ground rails and seven axis cantilever workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.
