Stand-alone Intelligent Workstation Manufacturers

handheld laser rust removal machine for sale

Handheld Continuous Wave Heavy-duty Laser Cleaning Machine

This type of laser cleaing machine main for cleaning rust，Manchine chose continuous wave fiber laser,it's not suitable for high-precision products.

Fiber laser marking machine

Laser marking technology is one of the largest application areas of laser processing. Laser marking is a marking method that uses a high-energy density laser to locally irradiate the workpiece to vaporize the surface material or cause a chemical reaction to change color, thereby leaving a permanent mark. Laser marking can produce a variety of characters, symbols and patterns, etc., and the size of the characters can range from millimeters to micrometers, which has special significance for the anti-counterfeiting of products.

3000 Watt Handheld Fiber Laser Welding Machine

Along with the development of fiber laser source , hand-held laser welding machine was widely used and changed the industrial welding market by making it much simple for different angle and welding processing like tailored welding ,overlap welding ,T-profile welding ，Internal/external corner welding and wire feefer .it could completely replace the application of traditional arc welder and electric welder technology in thin stainless steel ,iron sheet, aluminum plate and other metal sheet.

1500watt Portable Fiber Laser Welder

Welding is an innovative mounting technique that is used in all areas. While the technique itself is widespread, some of its processes are not yet as well known and underused. Laser welding falls into that category and, despite its false reputation as a complex process, offers many unparalleled advantages in terms of speed, technology and costs.

Cobot Laser Welding System

Handheld laser welding machine can work by manual, also can install on robot to make machine working full-automatic and increase work efficiency.

Cantilever seven-axis intelligent workstation

Seven axis cantilever intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis cantilever workstation is compatible with the adaptability of the ground rail workstation and improves the adaptability in the width direction. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information integrated with a fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.

Ground Track Intelligent Workstation

Each set of ground track welding workstation includes: arc welding robot, ground track walking mechanism, welding power supply, welding gun and water cooling system, vision system, intelligent welding system (standard configuration). The ground track length is 6 meters/9 meters, capable of X-axis displacement including ground track, gear rack, various linear guides, etc. The working range of the workstation in the Y-axis direction is 1.5 meters on each side, depending on the length of the track

Gantry Seven-axis Intelligent Workstation

Seven axis gantry intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis gantry workstation is compatible with the adaptability of ground rails and seven axis cantilever workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.

Handheld Continuous Wave Heavy-duty Laser Cleaning Machine

This type of laser cleaing machine main for cleaning rust，Manchine chose continuous wave fiber laser,it's not suitable for high-precision products.

Fiber laser marking machine

Laser marking technology is one of the largest application areas of laser processing. Laser marking is a marking method that uses a high-energy density laser to locally irradiate the workpiece to vaporize the surface material or cause a chemical reaction to change color, thereby leaving a permanent mark. Laser marking can produce a variety of characters, symbols and patterns, etc., and the size of the characters can range from millimeters to micrometers, which has special significance for the anti-counterfeiting of products.

3000 Watt Handheld Fiber Laser Welding Machine

Along with the development of fiber laser source , hand-held laser welding machine was widely used and changed the industrial welding market by making it much simple for different angle and welding processing like tailored welding ,overlap welding ,T-profile welding ，Internal/external corner welding and wire feefer .it could completely replace the application of traditional arc welder and electric welder technology in thin stainless steel ,iron sheet, aluminum plate and other metal sheet.

1500watt Portable Fiber Laser Welder

Welding is an innovative mounting technique that is used in all areas. While the technique itself is widespread, some of its processes are not yet as well known and underused. Laser welding falls into that category and, despite its false reputation as a complex process, offers many unparalleled advantages in terms of speed, technology and costs.

Cobot Laser Welding System

Handheld laser welding machine can work by manual, also can install on robot to make machine working full-automatic and increase work efficiency.

Cantilever seven-axis intelligent workstation

Seven axis cantilever intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis cantilever workstation is compatible with the adaptability of the ground rail workstation and improves the adaptability in the width direction. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information integrated with a fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.

Ground Track Intelligent Workstation

Each set of ground track welding workstation includes: arc welding robot, ground track walking mechanism, welding power supply, welding gun and water cooling system, vision system, intelligent welding system (standard configuration). The ground track length is 6 meters/9 meters, capable of X-axis displacement including ground track, gear rack, various linear guides, etc. The working range of the workstation in the Y-axis direction is 1.5 meters on each side, depending on the length of the track

Gantry Seven-axis Intelligent Workstation

Seven axis gantry intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis gantry workstation is compatible with the adaptability of ground rails and seven axis cantilever workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.

Payload	ARC12-2000: Payload 12KG
Maximum reach	2025MM
Working cycle	7*20H
Environmental requirements	0-45℃
Workstation weight	185KG
Robot end effector payload	12KG
Welding power source	AOTAI,MEGMEET
Operator requirements	Learning basic computer operations and mastering the GoFa Intelligent Operating System for application

subitem	unit	content
applicable scenarios	/	Suitable for node plates, purlins, cow legs, and other components, as well as small structural parts
equipment specifications	m	1.21.21
total power	KW	15.5
Maximum working range	m	21.20.3
average welding efficiency	m/day	60~90(The structural types are different)

what are you looking for?

Stand-alone Intelligent Workstation

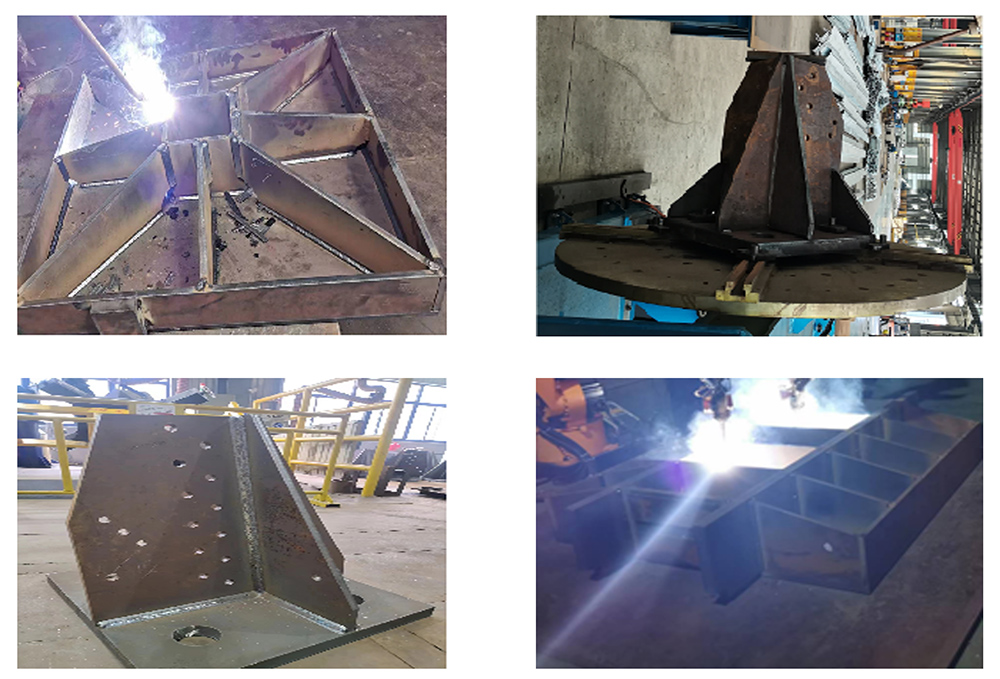

Product images

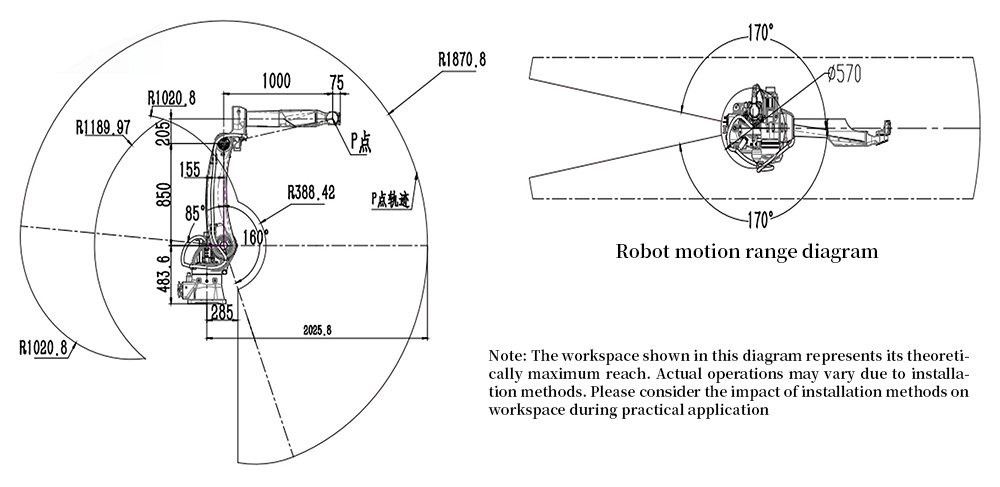

The working range of the robot

Workflow of a standalone intelligent workstation

Standalone Intelligent Workstation Parameters

Workflow of the Robotic Welding Workstation

PESLASER Series

Smart AI Welding Station
