Handheld  laser cleaning machine

수냉식 펄스 레이저 청소 기계

이 레이저 클리닝 기계는 금속 표면에 적합합니다.레이저 빔은 원하는 청소 효과를 정확하고 쉽게 얻을 수 있습니다.화학 세척액이나 소모품이 필요하지 않습니다.비접촉 세척으로 구성 요소 베이스를 손상으로부터 보호합니다.정밀 세척 기능으로 정확한 위치와 정확한 치수의 선택적 세척이 가능합니다.
  • 상표:

    PES LASER
  • 제품 번호.:

    PES-C300
  • 주문 (MOQ):

    1
  • 지불:

    30% DEPOSIT,70% BEFORE DELIVERY
  • 제품 기원:

    CHINA
  • 배송 포트:

    SHANGHAI/NINGBO/GUANGZHOU/QINGHAI
  • 리드 타임:

    7 day
  • 상품 무게:

    100kG
  • 개요
  • 풍모
  • 명세서
  • rfq.

제품 item: 수냉식 레이저 클리닝 머신

레이저 청소기는 장기적인 지속적인 서비스와 쉬운 업그레이드 및 일일 유지 보수를 실현할 수 있습니다.매우 높은 청소 효율과 시간 절약.

간단한 조작: 통전 후 핸드헬드 조작 또는 매니퓰레이터를 통해 자동 청소를 실현할 수 있습니다.유지 보수가 거의 필요 없는 안정적인 레이저 클리닝 시스템.

laser cleaning machine



애플리케이션

금속 표면 청소

b 금속 표면의 제거 페인트

c 표면의 얼룩 청소

d 표면 코팅 청소

e 용접면 청소 전처리

f 돌 표면 청소

g 고무 몰드 잔여물 청소

그것은 다양한 청소 요구를 충족시킬 수 있습니다

Laser cleaner




기술 업그레이드

laser cleaning system


- 4세대 이중 목적 레이저 헤드.

- 휴대용 및 자동.

- 잡기 쉽고 자동화와 통합됩니다.

- 조작이 간편하고 다양한 기능을 가지고 있습니다.

- 초점 렌즈는 직선, 원형, 나선형, 직사각형, 정사각형, 원형 ​​채우기, 직사각형 채우기 등을 스캔할 수 있습니다.고객 요구에 따라 적절한 스캔 패턴을 추가할 수 있습니다.

- 가볍고 편리한 레이저 헤드의 무게는 823g에 불과합니다.

-자동 모드 어댑터 플레이트, 5초 미만의 수동/자동 전환 시간.



다양한 매개변수 그래픽의 목표 소프트웨어 사전 저장

Fiber laser cleaning machine


1.간단한 소프트웨어, 미리 저장된 매개변수를 직접 선택합니다.

2.모든 종류의 매개변수 그래픽을 사전 저장하고 6가지 그래픽을 선택할 수 있습니다.: 직선/나선형/원형/직사각형/사각형 flling/원 채우기

3.사용하기 쉽고 작동하기 쉽습니다.

4.간단한 인터페이스.

5.12가지 다른 모드를 전환하고 신속하게 선택하여 생산 및 디버깅을 용이하게 할 수 있습니다.

6.언어는 영어/중국어 또는 기타 언어(필요한 경우)일 수 있습니다.



laser rust removal machine


상자 문은 270° 열림으로 자유롭게 회전할 수 있어 사용하기 더 편리합니다.측면 이중 핸들이 있는 바닥 금속 핸들, 아래로 향하게 쉬운, 이중 리프트/단일 핸드 리프트 또는 단일 리프트를 두 배로 쉽게 할 수 있습니다.


Portable laser cleaning machine

1.비접촉 청소, 공작물 손상 없음
2.두 배 빨간불 정확한 위치, 큰 표면 청소
3.소모품 없음, 화학 오염 없음, 에너지 절약 및 절전
4.높은 청소 효율, 시간 절약
5.안정적인 레이저 청소 시스템, 유지 보수가 필요 없음
최대 평균 전력(w) 200 300
출력 중심 파장(nm) 1064±5 1064±5
빔 품질(m²) ≤10
≤10
전력 조정 범위(%) 10-100 10-100
출력 불안정성(%)≤5
≤5
펄스 반복률(kHz) 10-50 20-50
펄스 길이(ns) 90-130 130-140
최대 펄스 에너지(mj)10 12.5
섬유 길이(m) 5/10 5/10
레이저 안전 분류44
냉각 방법 수냉 수냉
메시지를 남겨주세요
IF 우리의 제품에 관심이 있으시고 자세한 내용을 알고 싶습니다. 여기에 메시지를 남겨주세요, 우리는 최대한 빨리 당신을 회신 할 것입니다.
관련 상품
handheld laser rust removal machine for sale
1000WATT 핸드 헬드 연속 웨이브 헤비 듀티 레이저 청소 기계
이 레이저 유형 청소 청소를위한 기계 메인 녹, 기계 연속파 광섬유 레이저를 선택하면 적합하지 않습니다 고정밀도 제품.
Laser cleaning machine
공냉식 펄스 레이저 청소 기계
공냉식 레이저 청소 기계는 첨단 제품의 표면 청소의 새로운 세대입니다.설치, 조작 및 자동화가 쉽습니다. 간단한 조작으로 대상 수지, 오일, 얼룩의 표면을 제거 할 수 있습니다. 먼지, 수 놓은 혼탁, 코팅, 코팅, 페인트.
robot welding
Assembly and Welding Joint Workstation
Assembly and Welding Joint Intelligent Work Island is mainly used in the welding production of steel structure prefabricated buildings, steel structure roof beams, H-shaped steel beams and columns, and other types of intelligent production lines. The compatibility of the welding joint work island with the ground rail and the adaptability of the welding joint workstation. The system deeply integrates assembly and welding processes, and interacts with PLC signals after importing models to determine incoming material data. By scanning the base material and component materials through a visual system, accurate material retrieval and placement positions are obtained. The weld seam type and data are obtained through a model, and then integrated with a fabric welding expert library to automatically generate welding programs and execute welding.
laser welding machine
2000watt 핸드 헬드 파이버 레이저 용접기
레이저 용접기, 레이저 용접기 또는 레이저 용접 시스템이라는 레이저 빔의 높은 에너지 밀도를 채택하여 고급, 깊은 용접 이음새 및 높은 용접 요금을 만듭니다. 레이저 용접기는 주로 용접에 사용됩니다. 그. 금속 용 레이저 용접기에는 이종이 유사하게 용접 할 수 있습니다. 2000watt 강력한 핸드 헬드 레이저 용접기 Mian 두꺼운 재료를 용접하기 위해,단일 사이드 용접 침투 5mm. Double Side Weld Penetration 우리를 10mm.
intelligent welding

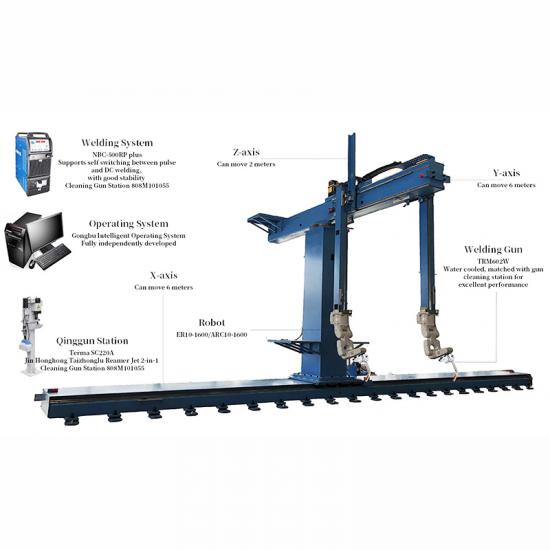

Gantry Eight-axis Intelligent Workstation
Eight Axis Gantry Intelligent Workstation is mainly used for the welding production of plate unit structure type workpieces in ships, bridges, and environmental protection equipment. The eight axis gantry workstation is compatible with the adaptability of ground rails, seven axis cantilevers, eight axis cantilevers, and seven axis gantry workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.
FIBER LASER WELDING MACHINE
1500watt 휴대용 섬유 레이저 용접기
용접은 모든 지역에서 사용되는 혁신적인 장착 기술입니다. 기술은 자체 널리 퍼져 있으며, 일부 프로세스 중 일부는 아직 잘 알려져 있지 않으며 레이저 용접은 해당 카테고리로 떨어지고 복잡한 프로세스로서의 거짓 평판에도 불구하고 속도, 기술 및 비용면에서 많은 비교할 수없는 이점을 제공합니다.
#weldingmachine #straightseamweldingmachine #tankweldingmachine
Straight Seam Automatic Welding Machine
This straight seam welding machine adopts the keys pressing mechanism, for work-piece in welding process provides a uniform and stable clamping force and cooling effect, reduces the deformation of welding and post weld heat-affected zone of the weld impact. Thus ensuring the work-piece welding is flat and smooth. Welding process using a welding process of welded forming on both sides, ensuring weld 100% welded. It is suitable for MIG/MAG and TIG welding of ferrous or nonferrous metals. Customers can choose the equipment, gas protection, water cooling, seam tracking.
intelligent welding
Cantilever Nine-axis Intelligent Workstation
Nine Axis Cantilever Intelligent Workstation is mainly used for the welding production of intermediate assembly structures of ships and bridges, as well as workpieces of high mechanical equipment types. The Nine Axis Cantilever Workstation is compatible with the adaptability of ground rail, seven axis cantilever, and eight axis cantilever workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.
